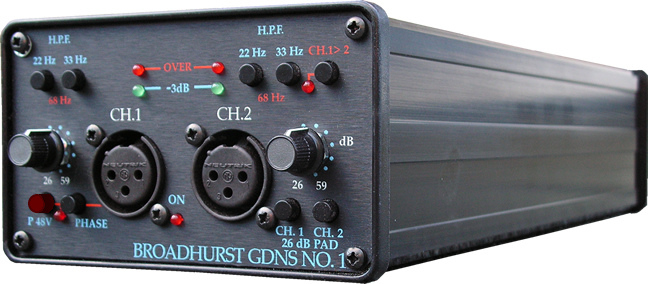

| This Microphone Amplifier
is ideal for location or studio recording. Because of it's compact
size it is easily transportable for location recording and is very
discrete in the studio or control room. |
| |
|
|
| |
| The features of
this microphone amplifier consist of low noise and low distortion.
It offers switched gain controls for high accuracy level setting,
level indication, switchable high pass filters, input pads, split
mode channel 1 shares its output with channel 2. Its main qualities
are that it is high quality at a low cost. |
| |
|
|
| |
| Frequency
Response: |
10Hz
- 150KHz ± 0.25dB |
|
Gain
Range: |
26dB - 59dB in 3dB steps.
[pad in 0dB - 33dB]
|
| Distortion: |
Less
than 0.01%
Typ, 0.001% 1KHz @ +20 dBu o/p |
|
High
Pass Filters: |
22Hz,
33Hz, 68Hz @ 12dB per octave. |
| Noise: |
25
microvolts [-110dB ref +20 dBu. Bandwidth 10Hz-18KHz input loaded
150 ohms, 32dB gain]. |
|
Phase Reversal: |
CH 1 only |
|
Level
Indication: |
Red LED +18dBu
Green LED +15dBu
Can be pre-set for your operating level
|
| 48v
Phantom: |
Switchable |
|
Clipping
Level: |
+29 dBu |
| 26dB
Pads: |
Ch
1 & Ch 2 |
|
Dimensions: |
60
x 115 x 295mm (HxWxD) |
|
|
|
Price: |
P.O.A. |
