| 1U
rackmount high quality 4 channel microphone amplifier. |
| |
|
|
| |
| The features of
this microphone amplifier consist of low noise and low distortion.
It offers switched gain controls for high accuracy level setting,
level indication, switchable high pass filters, input pads. |
| |
|
|
| |
| Frequency
response: |
10Hz
- 150KHz ± 0.25dB |
|
High
pass filter: |
68Hz
@ 12dB per octave |
| Distortion: |
Less
than 0.01%
Typ, 0.001% 1KHz @ +20dBu o/p |
|
Phase
reversal: |
All channels (Switchable)
|
| Noise: |
25
microvolts [-110dB ref
+20 dBu. Bandwidth 10Hz-18KHz input loaded 150 ohms, 32dB gain]. |
|
Level
Indication: |
Red LED +18dBu
Green LED +8dBu
Can be pre-set for your operating level
|
|
Clipping
level: |
+29
dBu |
| 48v
phantom: |
All
channels (Switchable) |
|

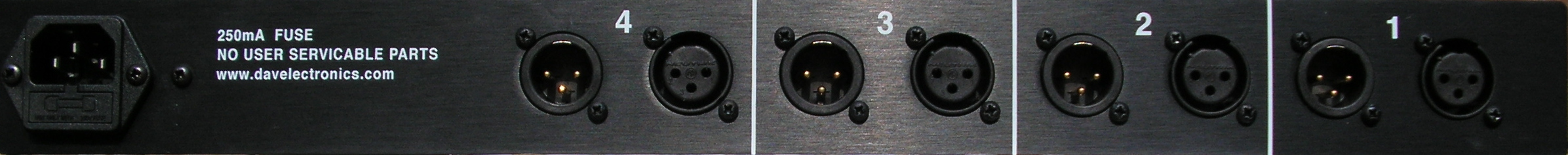

Connectors: |
IEC mains, XLR's
on rear |
| 26dB
pads: |
All
channels (Switchable) |
|
Dimensions: |
19"
1U rack mount. Depth = 150mm |
| Gain
range: |
22dB - 66dB in 4dB steps.
[pad in -4dB - +40dB]
|
|
Price: |
P.O.A. |
